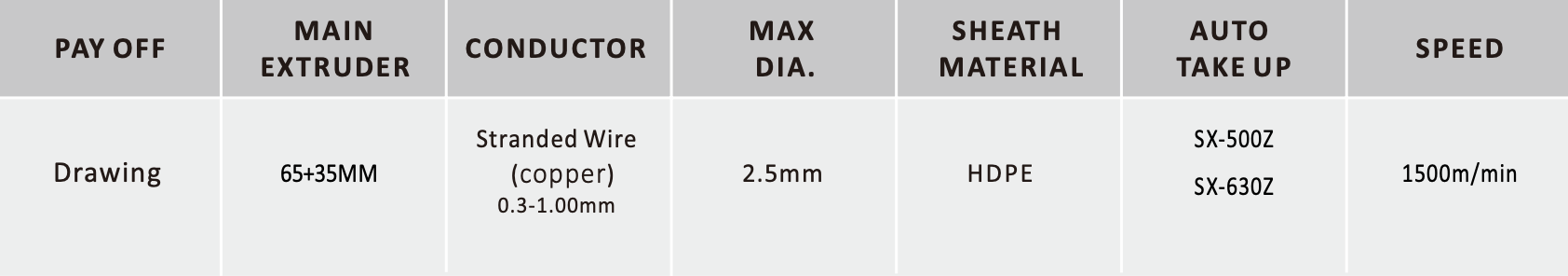

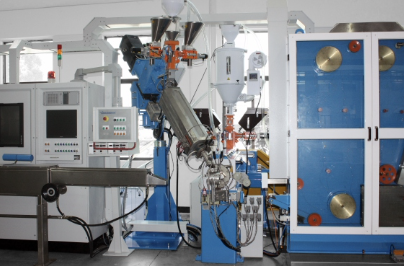

網路線電纜LAN CABLE INSULATION LINE
核心應用:CORE EXTRUSION

It is engineered for making insulation of LAN cable core wire with characters of high speed, stability, and reliability. It is possible to be the tandem line with wire drawing machine.

它專為LAN電纜芯線的絕緣而設計,具有高速、穩定、可靠的特性。可與拉銅機串聯生產線。

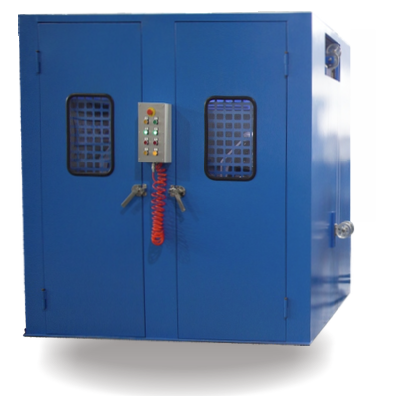

雙絞線 PAIR TWISTED
• 適用於CAT5、CAT6、CAT7芯線退絞絞製
 • Apply for CAT5 ,CAT6 ,CAT7 core wire back twist stranding •
• 對絞節距一般在5-45mm左右
 • Pair twisted pitch normally around 5-45mm
• 對節距穩定性及張力控制要求高
 • High requirement for pitch stability and tension control
• 節距變化容差<0.5%
 • Pitch change tolerance <0.5% •
• 芯線張力波動<10%
 •Core wire tension fluctuation <10%
• 退放線,提高對絞質量
 • Back-twist wire pay off to enhance pair stranding quality
組件:COMPONENTS:
• Ø500mm 退撚放線機
Ø500mm back twisting pay off
• Ø500mm對絞線機
 Ø500mm pair twisting machine
• 控制單元
 Control unit

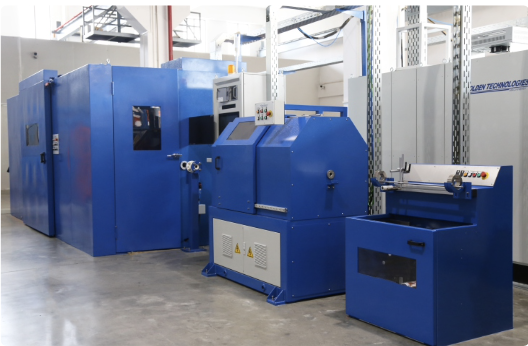

擱置LAYING UP

Cantilever type single stranding machine,mainly use for CAT5&CAT6 &CAT7 LAN cable, data cable, HDMI, control cable, etc. 4pair of cored wire laying up needs high precision.

懸臂式單絞機,主要用於CAT5&CAT6&CAT7網路線、資料線、HDMI、控制線等。

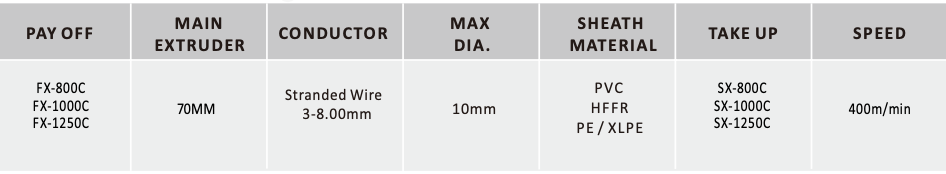

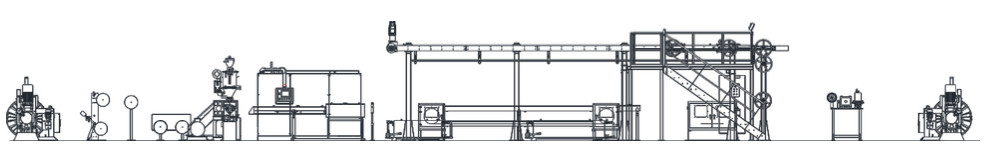

LAN 電纜護套線LAN CABLE SHEATH LINE

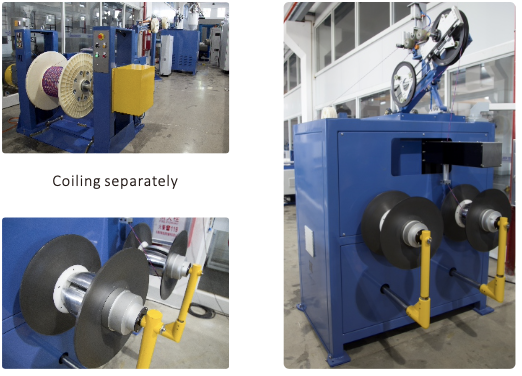

COILLING PACKING 捲取包裝
特徵 FEATURES:
• Can be online coiling with extruder
• Across reticulation flatting
• The hole of wire outlet centering can be modified
.
• The wire won't be mess or drop, and can be drawn out randomly
• Speed controlled by inverter
