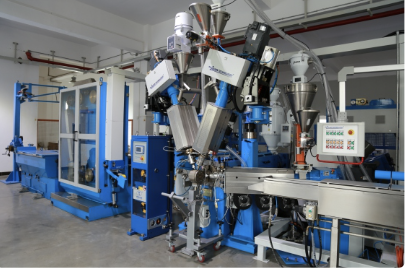

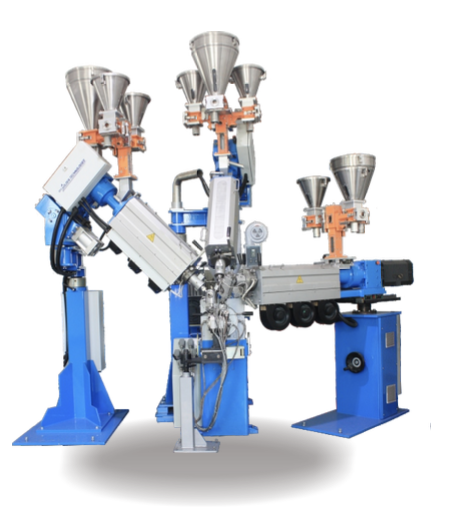

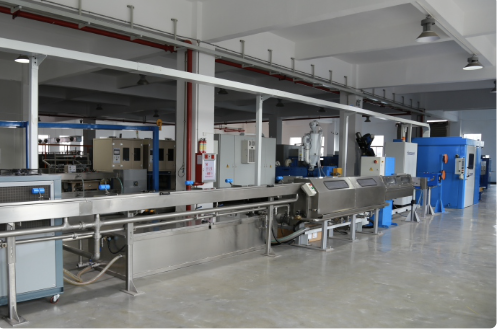

SFS物理發泡擠出生產線 S-F-S PHYSICAL FOAM EXTRUSION LINE
核心應用：CORE EXTRUSION
Design for making CAT7 and CAT8 LAN cable, Coaxial Cable and railway signal communication cable , CATV ,RG , JIS, DVI, HDMI etc.
專為製作CAT7和CAT8網路線、同軸電纜和鐵路號誌通訊電纜、CATV、RG、JIS、DVI、HDMI等而設計。
裝置 EQUIPMENT:
• Nitrogen injection machine for foaming

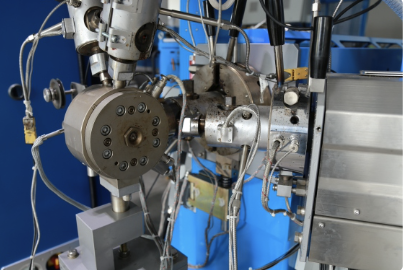

• The precise triple layer crosshead
• on-line testing device for capacitance eccentricity
• The precise triple layer crosshead
• on-line testing device for capacitance eccentricity
過程 PROCESS:
Process material: FM-PE,PE.
• 銅導體皮-泡棉-皮
Copper conductor skin-Foam-Skin
•物理髮泡三層
Physical foaming triple layer
•高性能共擠絕緣
Co-extruded insulation with high performance
• 銅導體皮-泡棉-皮
Copper conductor skin-Foam-Skin
•物理髮泡三層
Physical foaming triple layer
•高性能共擠絕緣
Co-extruded insulation with high performance
基本組件 BASIC COMPONENTS:
核心應用：CORE EXTRUSION
Max. Foaming degree: 70 %
• The optimization design, model large length diameter ratio of screw , with good foam , plastic completely etc.
• concentricity diameter of 0.05， capacitance tolerance +/-0.5， Temperature +/-1 degree.
最大限度。發泡度：70 %
• 最佳化設計，大長徑比螺桿，具有發泡好、塑化完全等特性。
同心直徑0.05，電容公差+/-0.5，溫度+/-1度。
TESTING ONLINE DEVICE 測試線上設備
• controller diameter
• capacitance testing
• concentricity testing
• International Brand control & monitor system
• 控制器直徑
• 電容測試
• 同心度測試
• 國際品牌控制監控系統

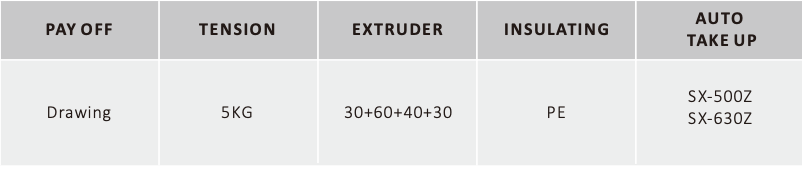

技術規格 TECHNICAL SPECIFICATION
